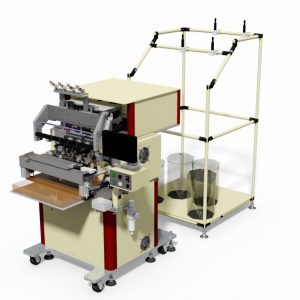

DSW-8004PT 4 Spindles Automatic Coil Winding Machine with Wire Twister

Feature:

• This machine has CE marking.
• This machine is an automatic 4 spindle bobbin coil winding machine.
• Machine equips with CNC 4-axis AC servo motor transmission system, accuracy position control.
• Coil winding machine equips with twister for fine wire twister during operation.
• This machine has installed automatic optional safety door closing and opening to prevent damage during operation.
• Coil winding machine equips with optional air-cutter or flat cutter for thick wire over 0.3mm to reduce remain wire on pin of bobbin.
• Automatic continuous winding makes cycle times reduce.
• It is equipped with PLC system, touch panel and AC servo motor.
• Parameter (program) set thru PLC system and 10″ touch panel.
• Quickly change tooling is offered in machine, it does not need tools to change it for time saving and keep precision.
• Machine equips with a Nozzle mechanism to rotates the nozzle 0, 90,  120 degrees for wire wrapping (binding) on pin of coil (bobbin) .
• Single wire or Multi-wires (bi-filar ) winding is available.
• Machine can perform perfect layer winding.
• Machine equips with quality mechanism tensioner controls winding quality
• Machine equips with a set of flexible wire gripper, it will not have residual remain wire keeping for cost saving.
• Password function is provided to prevent program from modified by non-related person.
• Safety door open/closed automatic
